    Affordable Housing Proposal

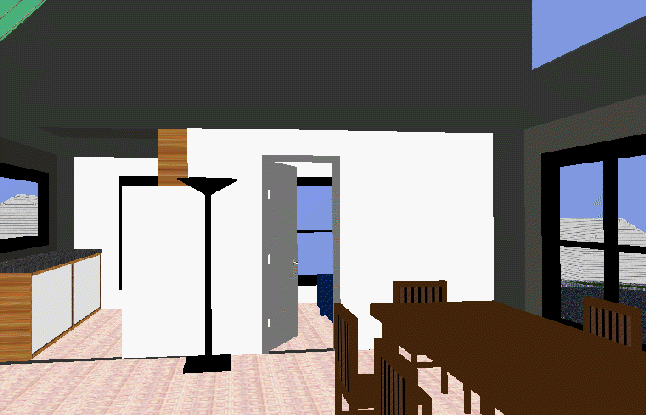

    View of the interior of one of the housing units.
  • Sponsored by: McKinley Design Corporation
  • Created by: Scott Starr
  • Software: AutoCAD, 3D Studio, WorldToolKit
  • Images:

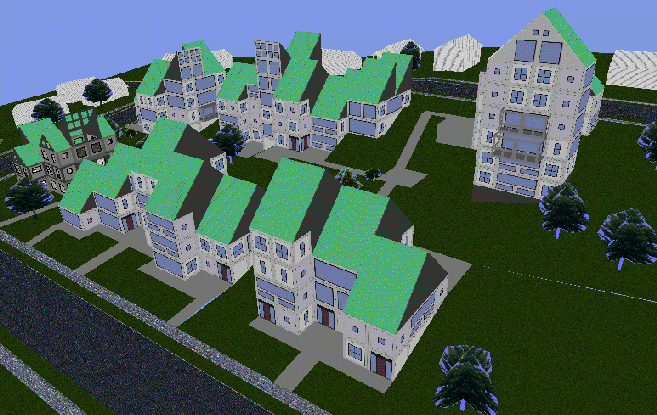

    Exterior View of the Cluster of Housing Units, (201 KB)
    Interior View of the Kitchen and Dining Area of a Unit, (115 KB)
  • Model:
    VRML 1.0, (3.46 MB)

    In the fall of 1994 and winter of 1995, CEDeS personnel developed a simulation of a proposal for affordable housing designed by David McKinley, FAIA. The housing development, sited in Seattle's Fremont neighborhood, is a cluster of homes made of pre-cast concrete frames with infill panels. The frames can be assembled rapidly and in a variety of configurations, enabling a designer to adapt the layout of the units to many different site conditions. The simulation features a number of such configurations, and the interior of one of the homes is developed to demonstrate a possible alternative for furniture layout.
